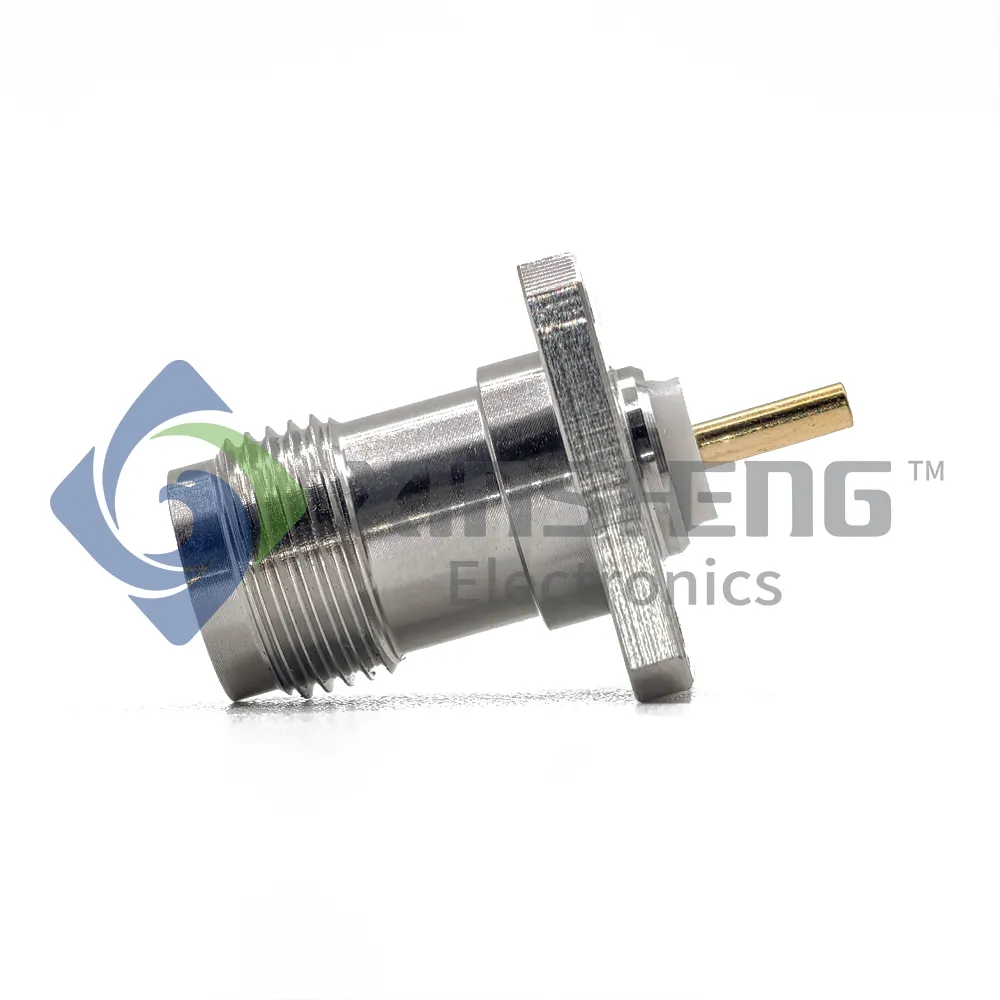

TNC Stright Solder Flange Mount Jack Female RF Connector

TNC Stright Solder Flange Mount Jack Female RF Connector

RF Connectors / TNC Connectors
The TNC (Threaded Neill-Concelman) connector is a common RF coaxial connector with a 50-ohm impedance, operating from DC up to 11 GHz or even 18 GHz in high-quality models. Similar to BNC but featuring a threaded connection, it ensures reliable, vibration-resistant electrical links. Widely applied in wireless communication, testing, and more, it balances performance with relatively high costs.
  • Avionic Equipment
  • Handheld Devices
  • Communication Equipment
RoHS REACH SVHC

General Specifications

Part Number 217000X2200
Termination Type Solder
Model Female
Category RF Connectors/Coaxial Connectors
Series TNC
Standard RoHS
Installation Style Flang Mount
Direction Stright
Part Number 217000X2200
Termination Type Solder
Model Female
Category RF Connectors/Coaxial Connectors
Series TNC
Standard RoHS
Installation Style Flang Mount
Direction Stright

Electrical Specifications

Impedance 50Ω
Frequency Range DC ~4GHz
VSWR ≤1.25 typ
Insulation Resistance ≥5000mΩ
Center contact resistance ≤1.5mΩ
Outer contact resistance ≤1.0mΩ
Withstand voltage 1500V rms
Working voltage 500V
RF-leakage(dB) ≥55dB@1GHz
Impedance 50Ω
Frequency Range DC ~4GHz
VSWR ≤1.25 typ
Insulation Resistance ≥5000mΩ
Center contact resistance ≤1.5mΩ
Outer contact resistance ≤1.0mΩ
Withstand voltage 1500V rms
Working voltage 500V
RF-leakage(dB) ≥55dB@1GHz

Physical Specifications

Main Material Brass
Contact Plating Gold
Insolator PTFE
Durability 500 Cycles
Main Material Brass
Contact Plating Gold
Insolator PTFE
Durability 500 Cycles

Environmental Specifications

Temperature Range -55°C ~ + 155°C
Moisture resistance IEC 61169-1. Subclause9.4.3
Rapid change of temperature IEC 61169-1. Subclause9.4.4
Vibration IEC 61169-1. Subclause9.3.3
Shock IEC 61169-1. Subclause9.3.14
Corrosion resistance IEC 61169-1. Subclause9.4.6
Temperature Range -55°C ~ + 155°C
Moisture resistance IEC 61169-1. Subclause9.4.3
Rapid change of temperature IEC 61169-1. Subclause9.4.4
Vibration IEC 61169-1. Subclause9.3.3
Shock IEC 61169-1. Subclause9.3.14
Corrosion resistance IEC 61169-1. Subclause9.4.6
