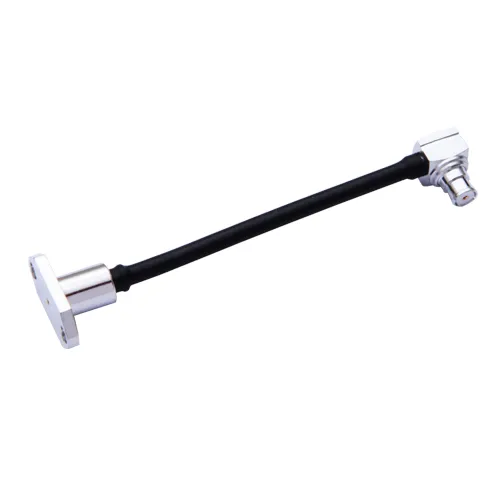

SMP-JB2/RG405/SMP-JWB2(100mm)

SMP-JB2/RG405/SMP-JWB2(100mm)

RF Cable Assemblies / SMA Cable Assemblies
SMP-SMP,RG405,50Ω,Brass/Gold,100mm
  • Communication Network
  • Instrument Testing
  • Antenna

General Specifications

Part Number /
Series RF Cable Assemblies
Connector A Series SMP-JB2
Connector A Gender Plug(Male)
Connector A Body Style Straight
ConnectorB Series SMA-JWB2
Connector B Gender Jack (Female)
Connector B Body Style Right Angle
Cable Length 100mm
Cable Type RG405
Part Number /
Series RF Cable Assemblies
Connector A Series SMP-JB2
Connector A Gender Plug(Male)
Connector A Body Style Straight
ConnectorB Series SMA-JWB2
Connector B Gender Jack (Female)
Connector B Body Style Right Angle
Cable Length 100mm
Cable Type RG405

Electrical Specifications

Impedance 50Ω
Frequency Range DC-3GHz
Dielectric Withstanding Voltage 750V rms
Insulation Resistance ≥1000MΩ
VSWR ≤1.15（DC-3GHz）
Impedance 50Ω
Frequency Range DC-3GHz
Dielectric Withstanding Voltage 750V rms
Insulation Resistance ≥1000MΩ
VSWR ≤1.15（DC-3GHz）

Physical Specifications

Contact Material Brass
Contact Plating Gold
Temperature Range -45℃~+85℃
Durability 500 Cycles
Contact Material Brass
Contact Plating Gold
Temperature Range -45℃~+85℃
Durability 500 Cycles
