RF Cable Assemblies / N Type Cable Assemblies

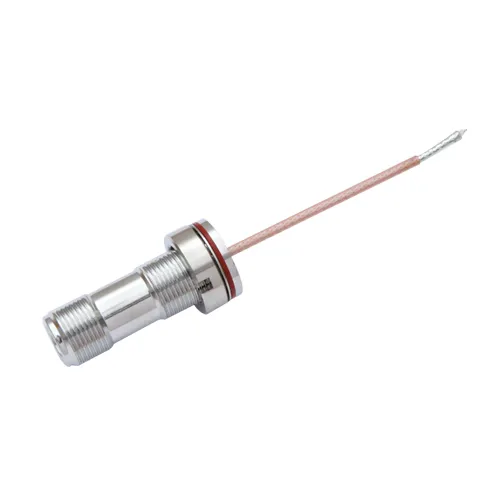

N,RG316,50Ω,Brass/Gold,70mm
  • Communication Network
  • Instrument Testing
  • Antenna

General Specifications

Part Number 22200035200
Series RF Cable Assemblies
Connector A Series N-KYF3H
Connector A Gender Jack (Female)
Connector A Body Style Straight
ConnectorB Series /
Connector B Gender /
Connector B Body Style /
Cable Length 70mm
Cable Type RG316
Part Number 22200035200
Series RF Cable Assemblies
Connector A Series N-KYF3H
Connector A Gender Jack (Female)
Connector A Body Style Straight
ConnectorB Series /
Connector B Gender /
Connector B Body Style /
Cable Length 70mm
Cable Type RG316

Electrical Specifications

Impedance 50Ω
Frequency Range DC-3GHz
Dielectric Withstanding Voltage 750V rms
Insulation Resistance ≥1000MΩ
VSWR ≤1.15（DC-3GHz）
Impedance 50Ω
Frequency Range DC-3GHz
Dielectric Withstanding Voltage 750V rms
Insulation Resistance ≥1000MΩ
VSWR ≤1.15（DC-3GHz）

Physical Specifications

Contact Material Brass
Contact Plating Gold
Temperature Range -45℃~+85℃
Durability 500 Cycles
Contact Material Brass
Contact Plating Gold
Temperature Range -45℃~+85℃
Durability 500 Cycles
