RF Cable Assemblies / N Type Cable Assemblies

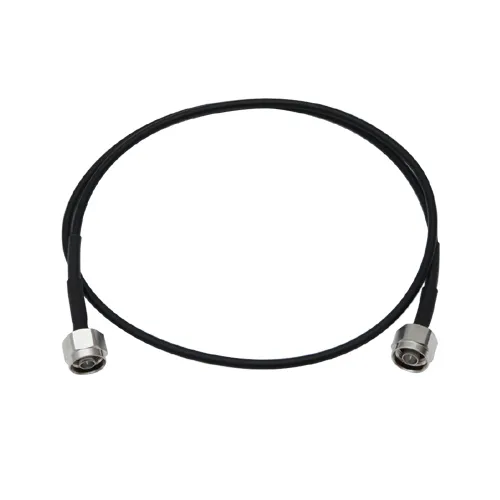

N-N,.141",50Ω,Brass/Gold,1000mm
  • Communication Network
  • Instrument Testing
  • Antenna

General Specifications

Part Number 22400175151
Series RF Cable Assemblies
Connector A Series N-JB3-05
Connector A Gender Jack (Female)
Connector A Body Style Straight
ConnectorB Series N-JB3-05
Connector B Gender Jack (Female)
Connector B Body Style Straight
Cable Length 1000mm
Cable Type .141"
Part Number 22400175151
Series RF Cable Assemblies
Connector A Series N-JB3-05
Connector A Gender Jack (Female)
Connector A Body Style Straight
ConnectorB Series N-JB3-05
Connector B Gender Jack (Female)
Connector B Body Style Straight
Cable Length 1000mm
Cable Type .141"

Electrical Specifications

Impedance 50Ω
Frequency Range DC-3GHz
Dielectric Withstanding Voltage 750V rms
Insulation Resistance ≥1000MΩ
VSWR ≤1.15（DC-3GHz）
Impedance 50Ω
Frequency Range DC-3GHz
Dielectric Withstanding Voltage 750V rms
Insulation Resistance ≥1000MΩ
VSWR ≤1.15（DC-3GHz）

Physical Specifications

Contact Material Brass
Contact Plating Gold
Temperature Range -45℃~+85℃
Durability 500 Cycles
Contact Material Brass
Contact Plating Gold
Temperature Range -45℃~+85℃
Durability 500 Cycles
