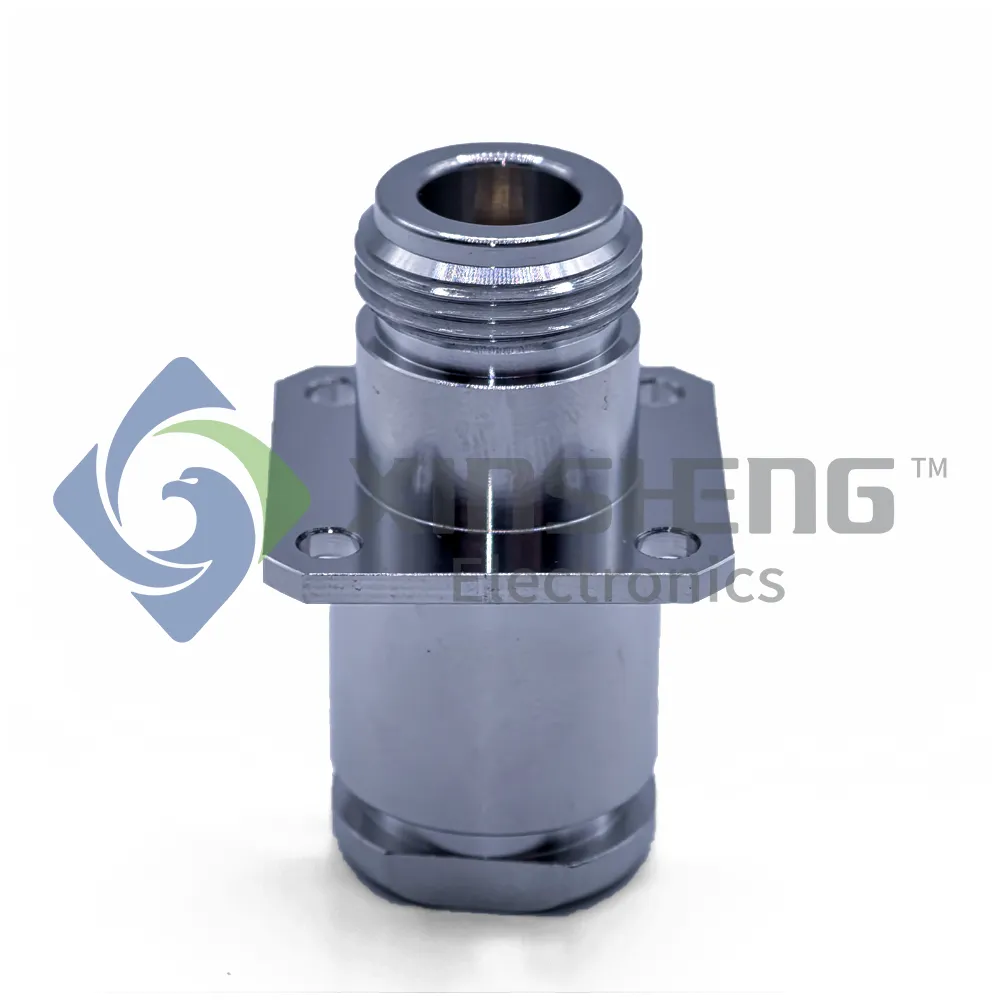

N Female connector N Type Connector Jack Female Socket 50 Ohms Panel Mount Solder thumbnail 1
N Female connector N Type Connector Jack Female Socket 50 Ohms Panel Mount Solder thumbnail 2
N Female connector N Type Connector Jack Female Socket 50 Ohms Panel Mount Solder thumbnail 3
N Female connector N Type Connector Jack Female Socket 50 Ohms Panel Mount Solder thumbnail 4
N Female connector N Type Connector Jack Female Socket 50 Ohms Panel Mount Solder

N Female connector N Type Connector Jack Female Socket 50 Ohms Panel Mount Solder

RF Connectors / N-Type Connectors
The N-type connector, a widely used radio frequency coaxial connector, was invented by Paul Neill. Its threaded connection ensures reliable and stable links even in harsh conditions. Supporting 50Ω and 75Ω impedances, it covers a frequency range up to 11GHz or 18GHz for enhanced models. With low signal loss and excellent electromagnetic shielding, it performs well in various environments. Popular in telecommunications, radar, and satellite systems, common types like plugs, sockets, and right-angle connectors meet different application requirements.
RoHS IEC 61169 REACH SVHC

General Specifications

Part Number 215008G2610
Termination Type Clamp
Model Socket (Female)
Category RF Connectors/Coaxial Connectors
Series N Type
Standard RoHS, REACH-Unaffected
Installation Style Flange Mount
Cable Type RG-213/U, 214/U, 393/U, ENVIROFLEX-393
Polarity Standard
Direction Straight
Part Number 215008G2610
Termination Type Clamp
Model Socket (Female)
Category RF Connectors/Coaxial Connectors
Series N Type
Standard RoHS, REACH-Unaffected
Installation Style Flange Mount
Cable Type RG-213/U, 214/U, 393/U, ENVIROFLEX-393
Polarity Standard
Direction Straight

Electrical Specifications

Impedance 50 Ohms
Frequency Range DC ~4GHz
Max Frequency 11GHz
Working Voltage 500V
Insulation Resistance ≥ 1000M Ohms
VSWR ≤1.3(DC~4GHz)
Impedance 50 Ohms
Frequency Range DC ~4GHz
Max Frequency 11GHz
Working Voltage 500V
Insulation Resistance ≥ 1000M Ohms
VSWR ≤1.3(DC~4GHz)

Physical Specifications

Main Material Beryllium Copper
Contact Plating Gold
Temperature Range -65°C ~ + 165°C
Durability 500 Cycles
Main Material Beryllium Copper
Contact Plating Gold
Temperature Range -65°C ~ + 165°C
Durability 500 Cycles
