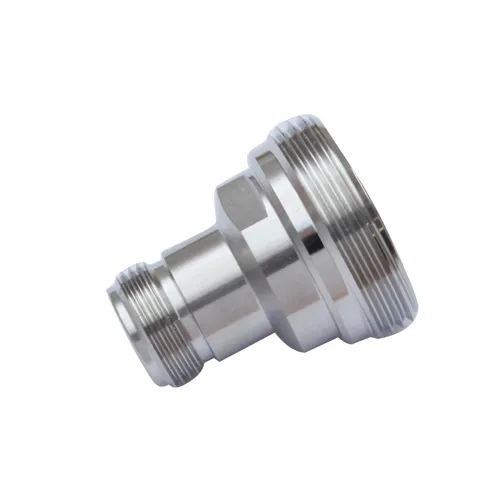

7/16-N-KK-02

7/16-N-KK-02

RF Adapters / DIN Adapters
7/16-N,KK,50Ω,Brass/Gold
  • Communication Network
  • Instrument Testing
  • Antenna

General Specifications

Part Number 230001B2252
Series RF Adaptors
Side A Series 7/16
Side A Gender Jack (Female)
Side B Series N
Side B Gender Jack (Female)
Body Style Straight
Part Number 230001B2252
Series RF Adaptors
Side A Series 7/16
Side A Gender Jack (Female)
Side B Series N
Side B Gender Jack (Female)
Body Style Straight

Electrical Specifications

Impedance 50Ω
Frequency Range DC-3GHz
Dielectric Withstanding Voltage 750V rms
Insulation Resistance ≥1000MΩ
VSWR ≤1.15（DC-3GHz）
Impedance 50Ω
Frequency Range DC-3GHz
Dielectric Withstanding Voltage 750V rms
Insulation Resistance ≥1000MΩ
VSWR ≤1.15（DC-3GHz）

Physical Specifications

Contact Material Brass
Contact Plating Gold
Temperature Range -45℃~+85℃
Durability 500 Cycles
Contact Material Brass
Contact Plating Gold
Temperature Range -45℃~+85℃
Durability 500 Cycles
