7/16/.141/7/16(2450)

7/16/.141/7/16(2450)

RF Cable Assemblies / DIN Cable Assemblies

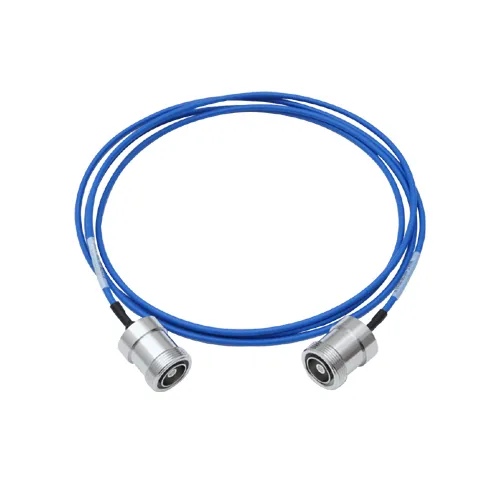

7/16-7/16,.141,blue,50Ω,Brass/Gold,2450mm
  • Communication Network
  • Instrument Testing
  • Antenna

General Specifications

Part Number 224000L2222
Series RF Cable Assemblies
Connector A Series 7/16
Connector A Gender Jack (Female)
Connector A Body Style Straight
ConnectorB Series 7/16
Connector B Gender Jack (Female)
Connector B Body Style Straight
Cable Length 2450mm
Cable Type .141
Part Number 224000L2222
Series RF Cable Assemblies
Connector A Series 7/16
Connector A Gender Jack (Female)
Connector A Body Style Straight
ConnectorB Series 7/16
Connector B Gender Jack (Female)
Connector B Body Style Straight
Cable Length 2450mm
Cable Type .141

Electrical Specifications

Impedance 50Ω
Frequency Range DC-3GHz
Dielectric Withstanding Voltage 750V rms
Insulation Resistance ≥1000MΩ
VSWR ≤1.15（DC-3GHz）
Impedance 50Ω
Frequency Range DC-3GHz
Dielectric Withstanding Voltage 750V rms
Insulation Resistance ≥1000MΩ
VSWR ≤1.15（DC-3GHz）

Physical Specifications

Contact Material Brass
Contact Plating Gold
Temperature Range -45℃~+85℃
Durability 500 Cycles
Contact Material Brass
Contact Plating Gold
Temperature Range -45℃~+85℃
Durability 500 Cycles
