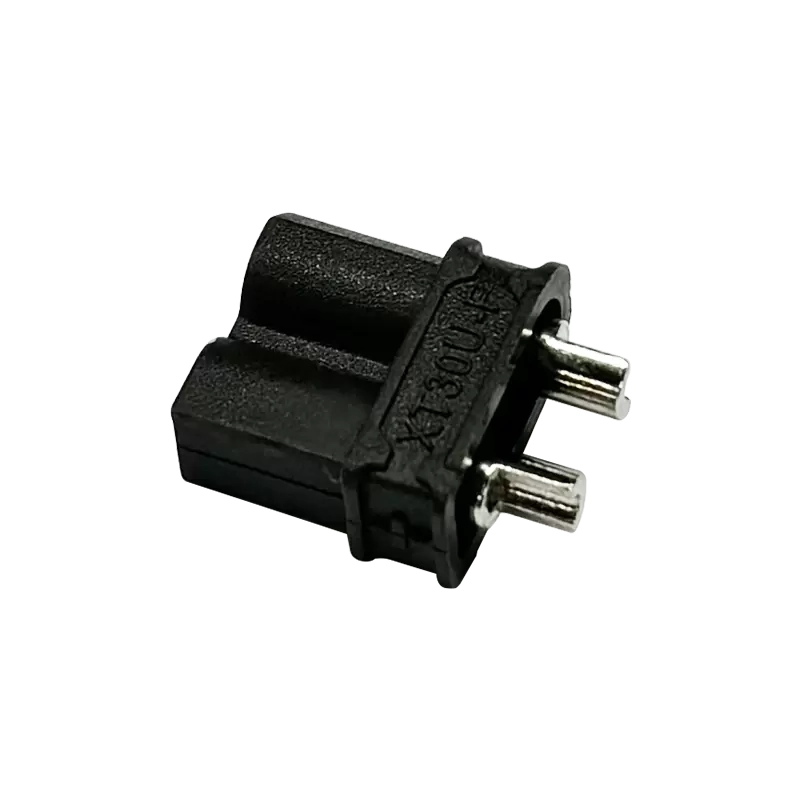

XT dual-pin connector – male and female

XT dual-pin connector – male and female

DC High-current Connector / XT Series
Black nickel-plated economy model XT30U battery connector, 10A high-current connector for lithium battery devices.

RoHS

Parameters Specifications

Rated Voltage 600V DC
Operating Temperature -20~120℃
Contact Resistance ≤3.0mΩ
Rated current 15A MAX (16AWG/△<85℃)
Salt Spray 24H
Insulation Resistance ≥2000MΩ
Material PA/Nickel-plated brass
Service life 100 times
Protection level IP40
Flame Retardant Rating UL94 V-0（0.8mm）
