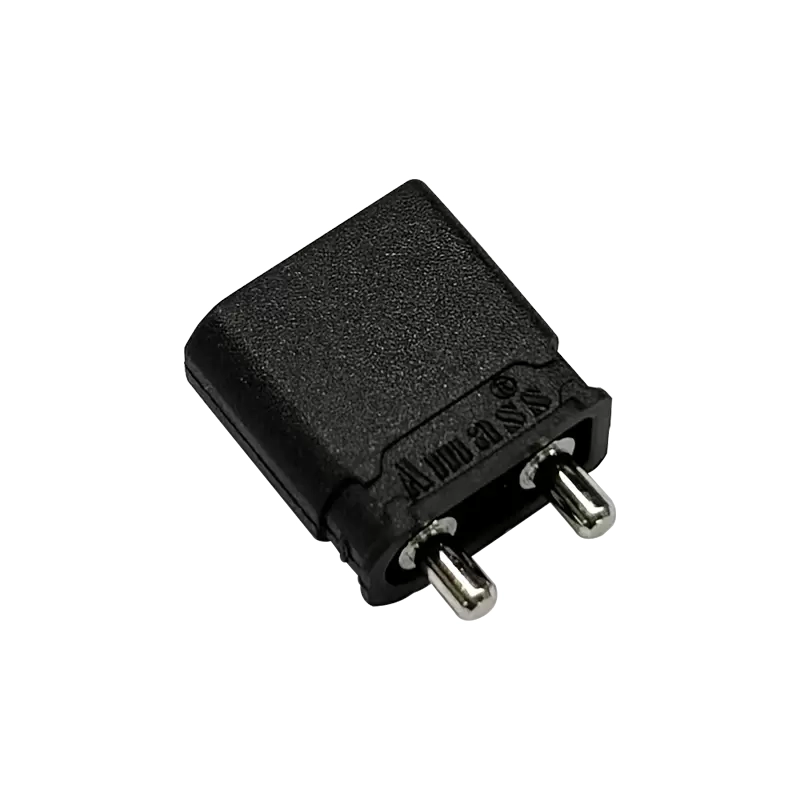

XT Dual-pin Board Vertical Connector – Male

XT Dual-pin Board Vertical Connector – Male

DC High-current Connector / XT Series
Board-mounted black nickel-plated power plug XT30UPB-M, energy storage power connector

RoHS

Parameters Specifications

Rated Voltage 600V DC
Operating Temperature -20~120℃
Contact Resistance ≤1.2mΩ
Rated current 15A MAX (△<85℃)
Salt Spray 24H
Insulation Resistance ≥2000MΩ
Material PA/Nickel-plated brass
Service life 100 times
Protection level IP40
Flame Retardant Rating UL94 V-0
