DC High-current Connector / LC Series

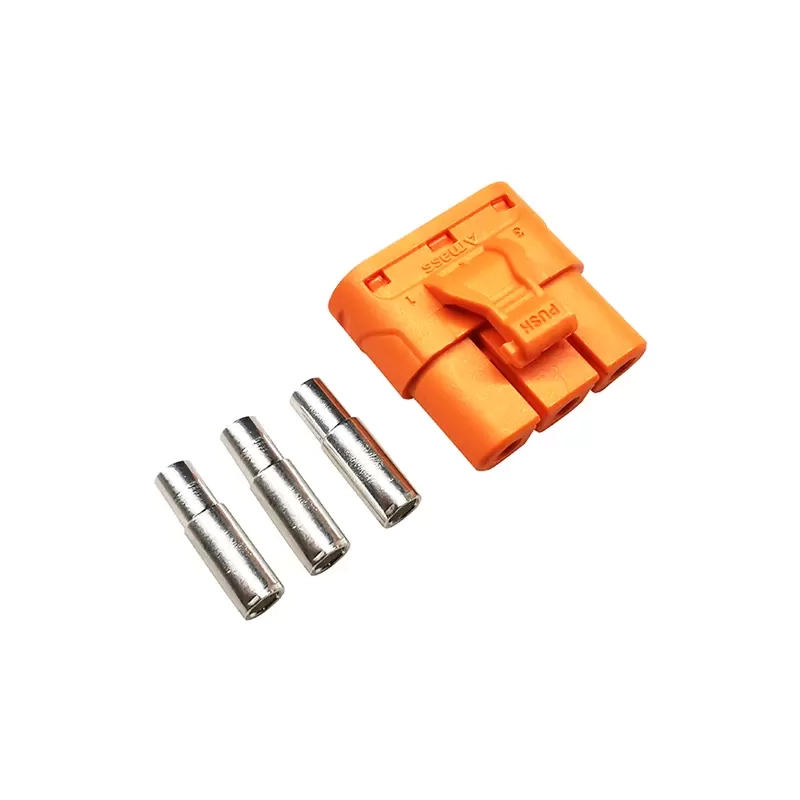

High-current 3-pin motor connector with locking buckle to prevent detachment, and crown spring structure for vibration resistance.
RoHS

Parameters Specifications

Rated Voltage 150V DC
Operating Temperature -40~120℃
Contact Resistance ≤0.6mΩ
Insulation Resistance ≥2000MΩ
Salt Spray 48H
Wire Connection Method Hexagonal Riveting
Housing Material PBT
Terminal Material Copper, Silver Plated
Board Connector Method Soldering
Flame Retardant Rating UL94 V-0（0.8mm）
Glow Wire Flammability Index GWFI 850℃（0.8mm）
Environmental Performance RoHS2.0, REACH
Rated Voltage 150V DC
Operating Temperature -40~120℃
Contact Resistance ≤0.6mΩ
Insulation Resistance ≥2000MΩ
Salt Spray 48H
Wire Connection Method Hexagonal Riveting
Housing Material PBT
Terminal Material Copper, Silver Plated
Board Connector Method Soldering
Flame Retardant Rating UL94 V-0（0.8mm）
Glow Wire Flammability Index GWFI 850℃（0.8mm）
Environmental Performance RoHS2.0, REACH

Suitable Wire Gauge Specifications

12# Rated Current: 30A ,Temp Rise ≤30K
12# Rated Current: 42A ,Temp Rise ≤55K
14# Rated Current: 20A ,Temp Rise ≤30K
14# Rated Current: 32A ,Temp Rise ≤55K
12# Rated Current: 30A ,Temp Rise ≤30K
12# Rated Current: 42A ,Temp Rise ≤55K
14# Rated Current: 20A ,Temp Rise ≤30K
14# Rated Current: 32A ,Temp Rise ≤55K
