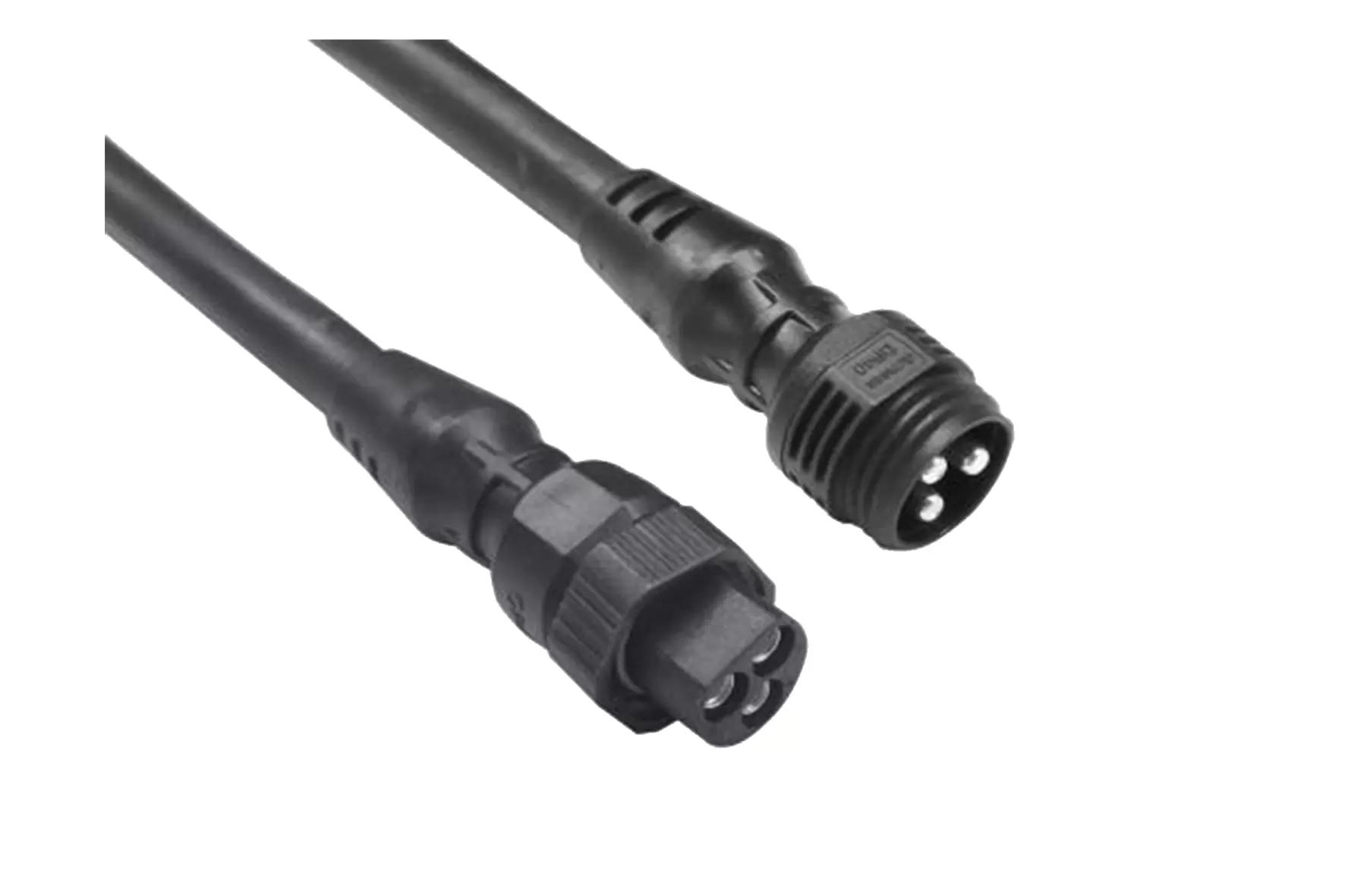

DP40 3-pin motor cable – male and female connectors

DP40 3-pin motor cable – male and female connectors

DC High-current Connector / Other Series
DP40 connector for garden tool cutter head motor wiring, high temperature and high humidity resistant connector.

RoHS

Parameters Specifications

Rated Voltage 600V DC
Operating Temperature -20~120℃
Contact Resistance ≤1.0mΩ
Rated current 50A 10AWG
Salt Spray 48H
Insulation Resistance ≥50MΩ
Material PA/gold-plated brass
Service life 100 times
Protection level IP66
Flame Retardant Rating UL94 V-0（0.8mm）
Rated Voltage 600V DC
Operating Temperature -20~120℃
Contact Resistance ≤1.0mΩ
Rated current 50A 10AWG
Salt Spray 48H
Insulation Resistance ≥50MΩ
Material PA/gold-plated brass
Service life 100 times
Protection level IP66
Flame Retardant Rating UL94 V-0（0.8mm）
