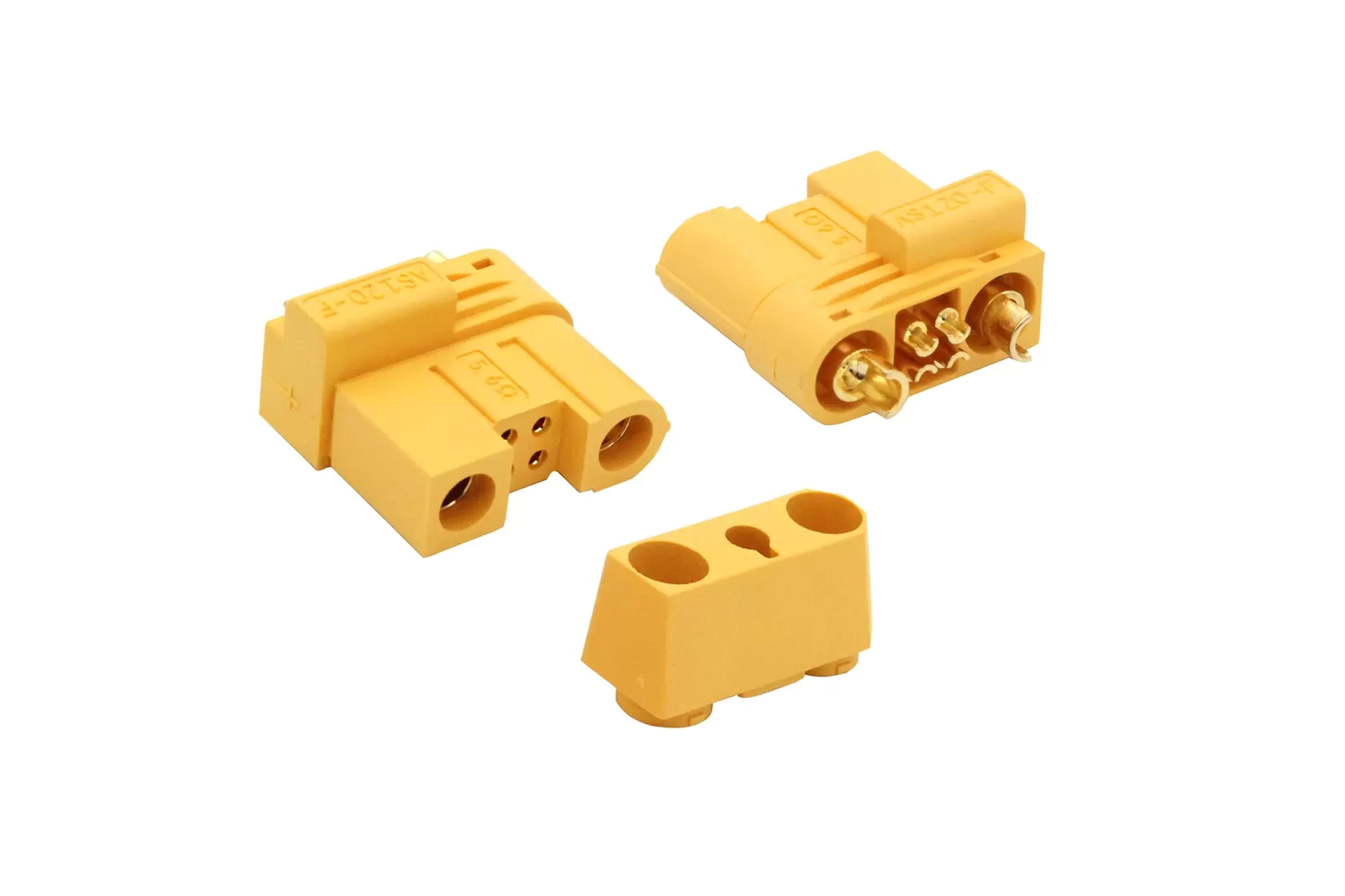

AS 2+4 Spark-Proof Connector – Male and Female

AS 2+4 Spark-Proof Connector – Male and Female

DC High-current Connector / AS Series
High current connector AS120 (2+4), mixed signal spark-proof connector

RoHS

Parameters Specifications

Rated Voltage 600V DC
Operating Temperature -20~120℃
Contact Resistance ≤1.0mΩ
Rated current 60A MAX (8AWG, △＜85℃)
Signal pin 1A
Salt Spray 48H
Insulation Resistance ≥2000MΩ
Material PA/gold-plated brass
Service life 100 times
Protection level IP40
Flame Retardant Rating UL94 V-0
