BNC Adaptors

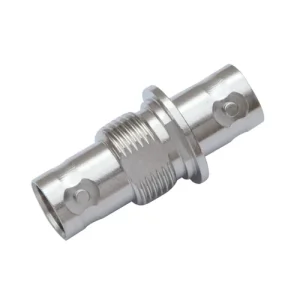

BNC adapters come in several configurations, including gender changers (male to female), barrel connectors (female to female), right-angle adapters, and impedance converters (50 Ω to 75 Ω). Selecting the right adapter depends on your system’s cable type, impedance matching requirements, and physical space constraints. For example, use 75 Ω adapters for video signals to avoid signal degradation, while 50 Ω versions are common in RF test setups.

BNC adapters are widely used in security camera installations, broadcast television equipment, RF test benches, audio video distribution, and networking hardware. Their quick connect/disconnect feature and secure locking mechanism make them ideal for temporary test setups or permanent systems requiring high reliability. They also simplify cable management by allowing flexible reconfiguration without replacing entire cables.

Properly selected BNC adapters maintain low insertion loss and minimize signal reflection, preserving overall system performance. However, using incorrect impedance adapters or poorly made components can cause signal distortion or increased return loss. High-quality BNC adapters ensure consistent impedance matching and shielding effectiveness, which reduces electromagnetic interference and maintains signal clarity in critical communication and video transmission systems.

To maximize longevity, regularly inspect adapters for physical damage or corrosion, especially in outdoor or harsh environments. Clean contacts with appropriate solvents and lint-free cloths to remove dirt or oxidation. Avoid excessive twisting or pulling during installation, and ensure adapters are securely mated without forcing connections. When not in use, cover adapters with dust caps to protect mating surfaces from contaminants and mechanical wear.
