DC High-current Connector / XL Series

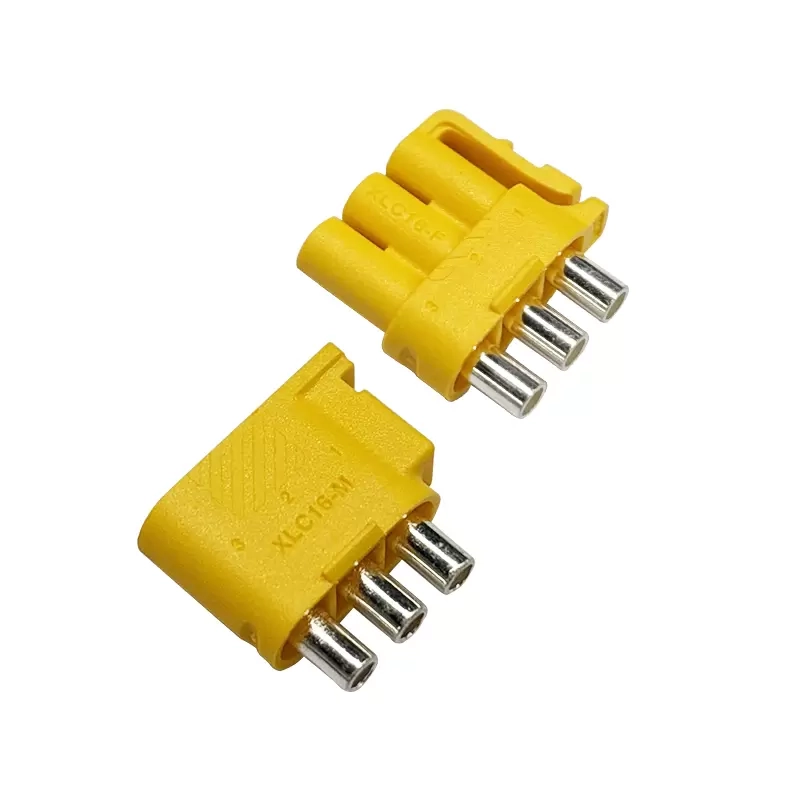

Three-core riveted power connector XLC16, with lock, anti-vibration

RoHS

Parameters Specifications

Rated Voltage 80V DC
Operating Temperature -40~120℃
Contact Resistance ≤0.8mΩ
Insulation Resistance ≥2000MΩ
Salt Spray 48H
Wire Connection Method B-type Riveting
Housing Material PBT
Terminal Material Tough Pitch Copper, Silver Plated,Nickel plated
Board Connector Method Soldering
Flame Retardant Rating UL94 V-0（0.8mm）
Glow Wire Flammability Index GWFI 850℃（0.8mm）
Environmental Performance RoHS2.0, REACH
Rated Voltage 80V DC
Operating Temperature -40~120℃
Contact Resistance ≤0.8mΩ
Insulation Resistance ≥2000MΩ
Salt Spray 48H
Wire Connection Method B-type Riveting
Housing Material PBT
Terminal Material Tough Pitch Copper, Silver Plated,Nickel plated
Board Connector Method Soldering
Flame Retardant Rating UL94 V-0（0.8mm）
Glow Wire Flammability Index GWFI 850℃（0.8mm）
Environmental Performance RoHS2.0, REACH

Suitable Wire Gauge Specifications

16# Rated Current: 16A ,Temp Rise ≤55K
16# Rated Current: 22A ,Temp Rise ≤85K
18# Rated Current: 12A ,Temp Rise ≤55K
18# Rated Current: 15A ,Temp Rise ≤85K
16# Rated Current: 16A ,Temp Rise ≤55K
16# Rated Current: 22A ,Temp Rise ≤85K
18# Rated Current: 12A ,Temp Rise ≤55K
18# Rated Current: 15A ,Temp Rise ≤85K
