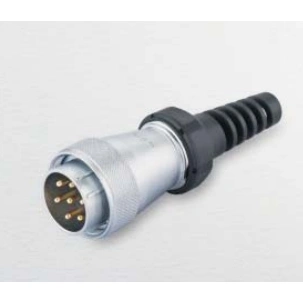

WY Series Electrical Circular Connector
Circular Connector
/
WY Series
WY,Solder/Screw/Crimp, -40°C~85°C, low resistance, high insulation,10A,500V,500 cycles
Quote
Remove
General Specifications
Category
Circular Connectors
Series
WY Series
Termination
Solder/Screw/Crimp
Category
Circular Connectors
Series
WY Series
Termination
Solder/Screw/Crimp
Electrical Specifications
Dielectric Withstanding Voltage
1500V rms
Current Rating
10A
Working Voltage
500V
Contact Resistance
1mΩ
Dielectric Withstanding Voltage
1500V rms
Current Rating
10A
Working Voltage
500V
Contact Resistance
1mΩ
Physical Specifications
Operating Temperature
-40°C~+85°C
Mechanical Operation
500 Cycles
Main Material
Zinc
Contact Plating
Au
Operating Temperature
-40°C~+85°C
Mechanical Operation
500 Cycles
Main Material
Zinc
Contact Plating
Au
