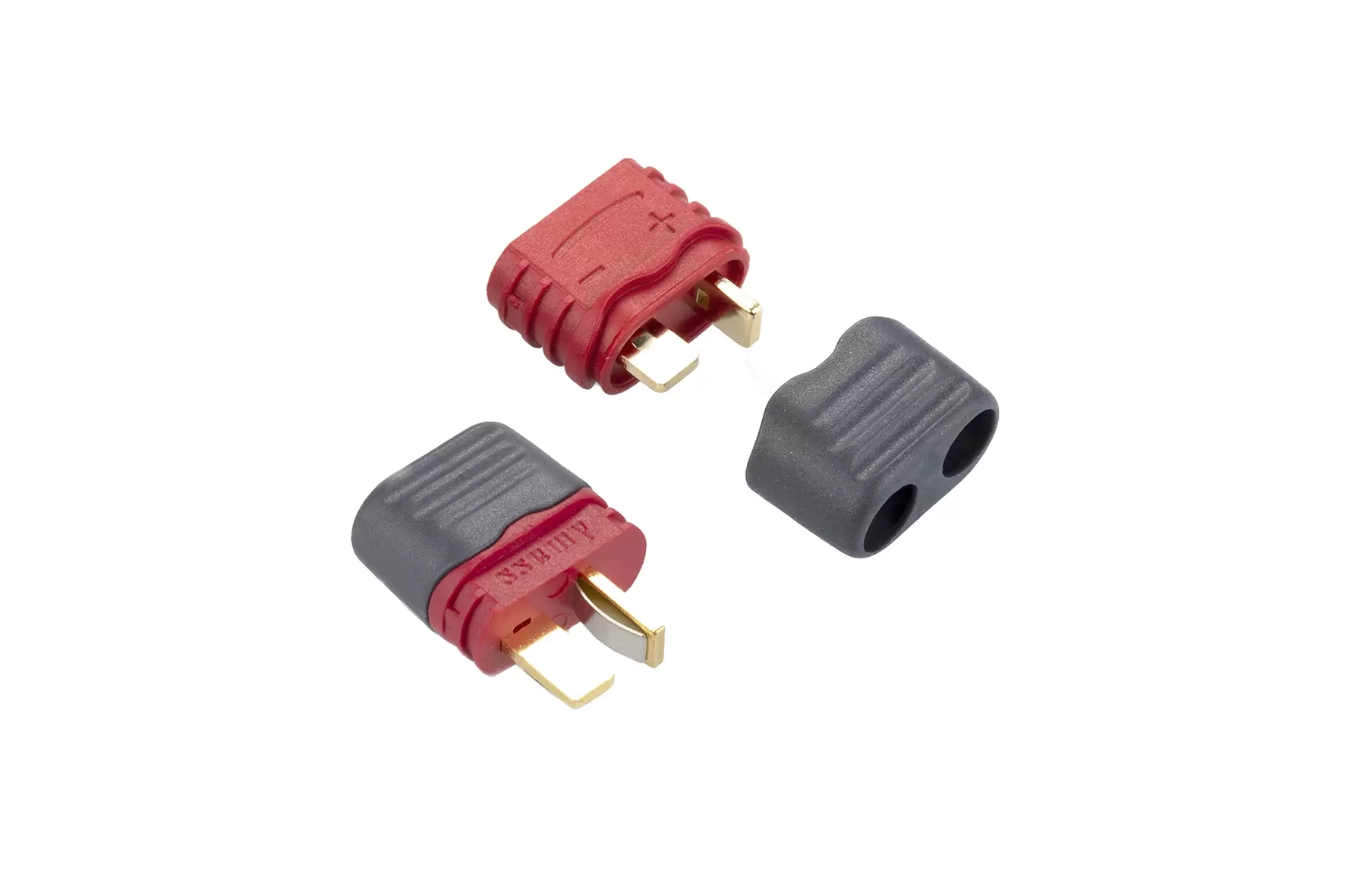

T-plug with rear cover – male and female

T-plug with rear cover – male and female

DC High-current Connector / AM Series
AM-1015E electric scooter battery plug connector, electric balance scooter lithium battery pack connector, T-type plug with rear cover.

RoHS

Parameters Specifications

Rated Voltage 600V DC
Operating Temperature -20~120℃
Contact Resistance ≤1.0mΩ
Rated current 20A MAX (16AWG/△≤85K)
Salt Spray 48H
Insulation Resistance ≥2000MΩ
Material PA/gold-plated brass
Service life 100 times
Protection level IP40
Flame Retardant Rating UL94 V-0
Rated Voltage 600V DC
Operating Temperature -20~120℃
Contact Resistance ≤1.0mΩ
Rated current 20A MAX (16AWG/△≤85K)
Salt Spray 48H
Insulation Resistance ≥2000MΩ
Material PA/gold-plated brass
Service life 100 times
Protection level IP40
Flame Retardant Rating UL94 V-0
