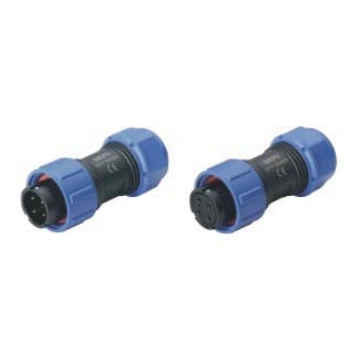

SP17 Series Electrical Circular Connectors
Circular Connector
/
SP Series
SP17,Solder,IP68, -40°C~85°C, low resistance, high insulation,5A,500V,500 cycles
Quote
Remove
General Specifications
Category
Circular Connectors
Series
SP Series
Termination
Solder
Cable OD
6~10mm
Category
Circular Connectors
Series
SP Series
Termination
Solder
Cable OD
6~10mm
Electrical Specifications
Dielectric Withstanding Voltage
1500V rms
Current Rating
5A
Working Voltage
500V
Contact Resistance
5mΩ
Insulation Resistance
2000MΩ
Dielectric Withstanding Voltage
1500V rms
Current Rating
5A
Working Voltage
500V
Contact Resistance
5mΩ
Insulation Resistance
2000MΩ
Physical Specifications
Protection Degree
IP68
Operating Temperature
-40°C~+85°C
Mechanical Operation
500 Cycles
Main Material
PC66
Contact Plating
Au
Protection Degree
IP68
Operating Temperature
-40°C~+85°C
Mechanical Operation
500 Cycles
Main Material
PC66
Contact Plating
Au
