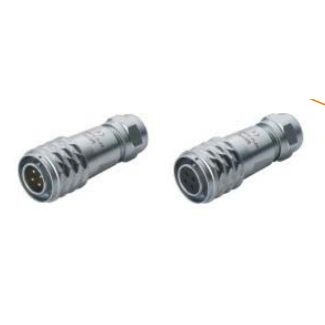

SF12 Series Electrical Circular Connectors
Circular Connector
/
SF Series
SF12,Solder,IP67, -40°C~85°C, low resistance, high insulation, 5A,300V,500 cycles
Quote
Remove
General Specifications
Category
Circular Connectors
Series
SF Series
Termination
Solder
Cable OD
4~6.5mm
Category
Circular Connectors
Series
SF Series
Termination
Solder
Cable OD
4~6.5mm
Electrical Specifications
Dielectric Withstanding Voltage
1000V rms
Current Rating
5A
Working Voltage
300V
Contact Resistance
5mΩ
Insulation Resistance
2000MΩ
Dielectric Withstanding Voltage
1000V rms
Current Rating
5A
Working Voltage
300V
Contact Resistance
5mΩ
Insulation Resistance
2000MΩ
Physical Specifications
Protection Degree
IP67
Operating Temperature
-40°C~+85°C
Mechanical Operation
500 Cycles
Main Material
Brass
Contact Plating
Au
Protection Degree
IP67
Operating Temperature
-40°C~+85°C
Mechanical Operation
500 Cycles
Main Material
Brass
Contact Plating
Au
