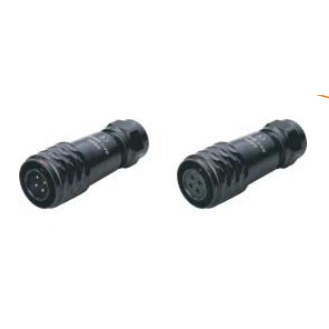

SA12 Series Electrical Circular Connectors
Circular Connector
/
SA Series
SA12,Solder,IP67, -40°C~85°C, low resistance, high insulation, 5A,125V,500 cycles
Quote
Remove
General Specifications
Category
Circular Connectors
Series
SA Series
Termination
Solder
Cable OD
4~6.5mm
Category
Circular Connectors
Series
SA Series
Termination
Solder
Cable OD
4~6.5mm
Electrical Specifications
Dielectric Withstanding Voltage
1000V rms
Current Rating
5A
Working Voltage
125V
Contact Resistance
5mΩ
Insulation Resistance
1000MΩ
Dielectric Withstanding Voltage
1000V rms
Current Rating
5A
Working Voltage
125V
Contact Resistance
5mΩ
Insulation Resistance
1000MΩ
Physical Specifications
Protection Degree
IP67
Operating Temperature
-40°C~+85°C
Mechanical Operation
500 Cycles
Main Material
Anodized
Contact Plating
Au
Protection Degree
IP67
Operating Temperature
-40°C~+85°C
Mechanical Operation
500 Cycles
Main Material
Anodized
Contact Plating
Au
