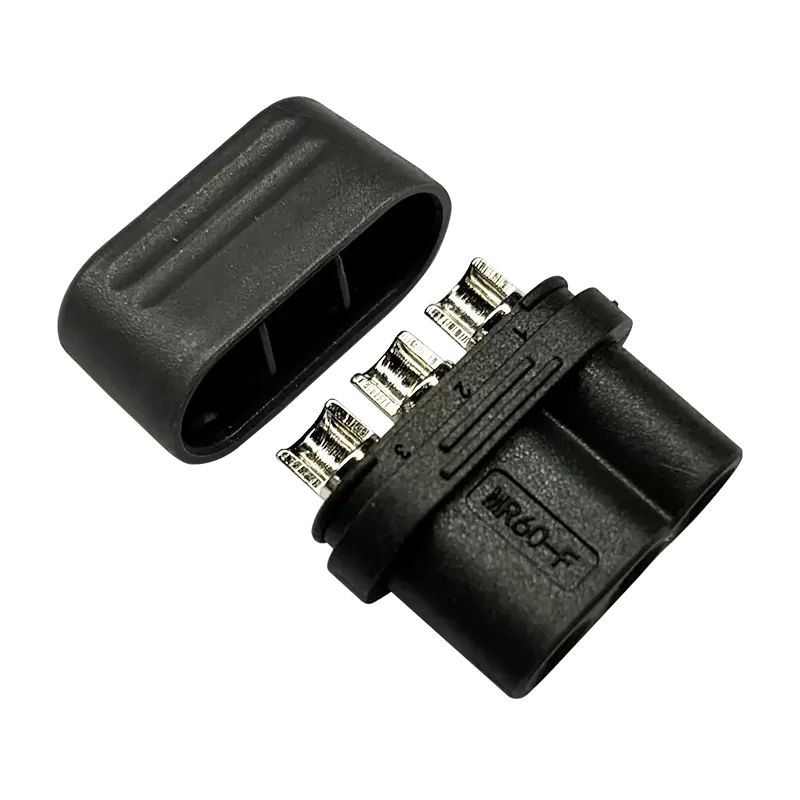

MR three-pin wire connector – male and female-black

MR three-pin wire connector – male and female-black

DC High-current Connector / MR series
High current 3-pin connector MR60 black nickel-plated, motor electrical call high current connector

RoHS

Parameters Specifications

Rated Voltage 600V DC
Operating Temperature -20~120℃
Contact Resistance ≤1.5mΩ
Rated current 30A MAX (12AWG/△＜85℃)
Salt Spray 24H
Insulation Resistance ≥2000MΩ
Material PA/nickel-plated brass
Service life 100 times
Protection level IP40
Flame Retardant Rating UL94 V-0
