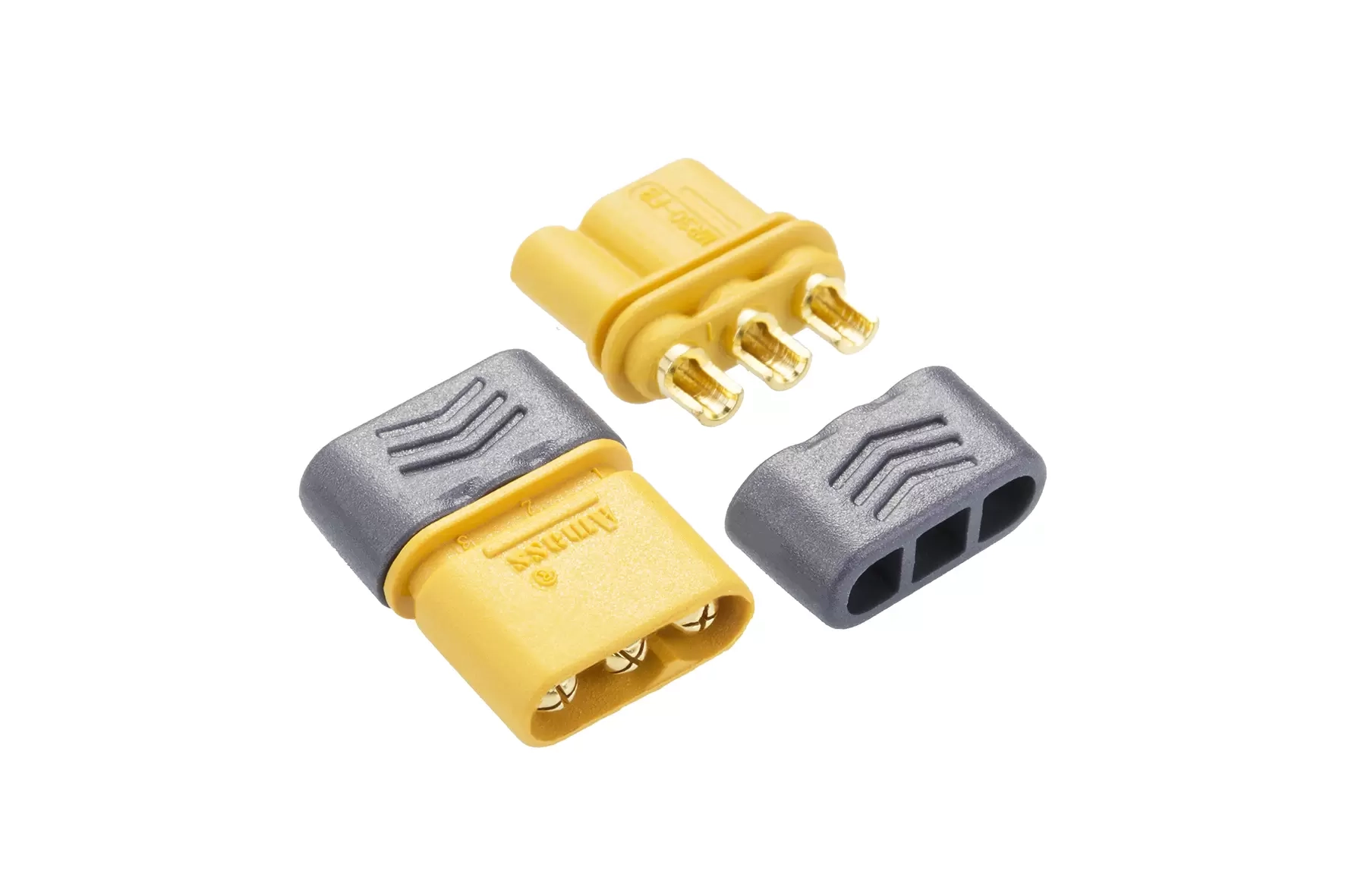

MR three-pin wire connector—male and female

MR three-pin wire connector—male and female

DC High-current Connector / MR series
High current DC motor plug MR30, three-hole connector, anti-reverse plug-in motor connector

RoHS

Parameters Specifications

Rated Voltage 80V DC
Operating Temperature -20~120℃
Contact Resistance ≤1.2mΩ
Rated current 20A MAX (16AWG/△≤85K)
Salt Spray 48H
Insulation Resistance ≥2000MΩ
Material PA/gold-plated brass
Service life 100 times
Protection level IP40
Flame Retardant Rating UL94 V-0（0.8mm）
Rated Voltage 80V DC
Operating Temperature -20~120℃
Contact Resistance ≤1.2mΩ
Rated current 20A MAX (16AWG/△≤85K)
Salt Spray 48H
Insulation Resistance ≥2000MΩ
Material PA/gold-plated brass
Service life 100 times
Protection level IP40
Flame Retardant Rating UL94 V-0（0.8mm）
