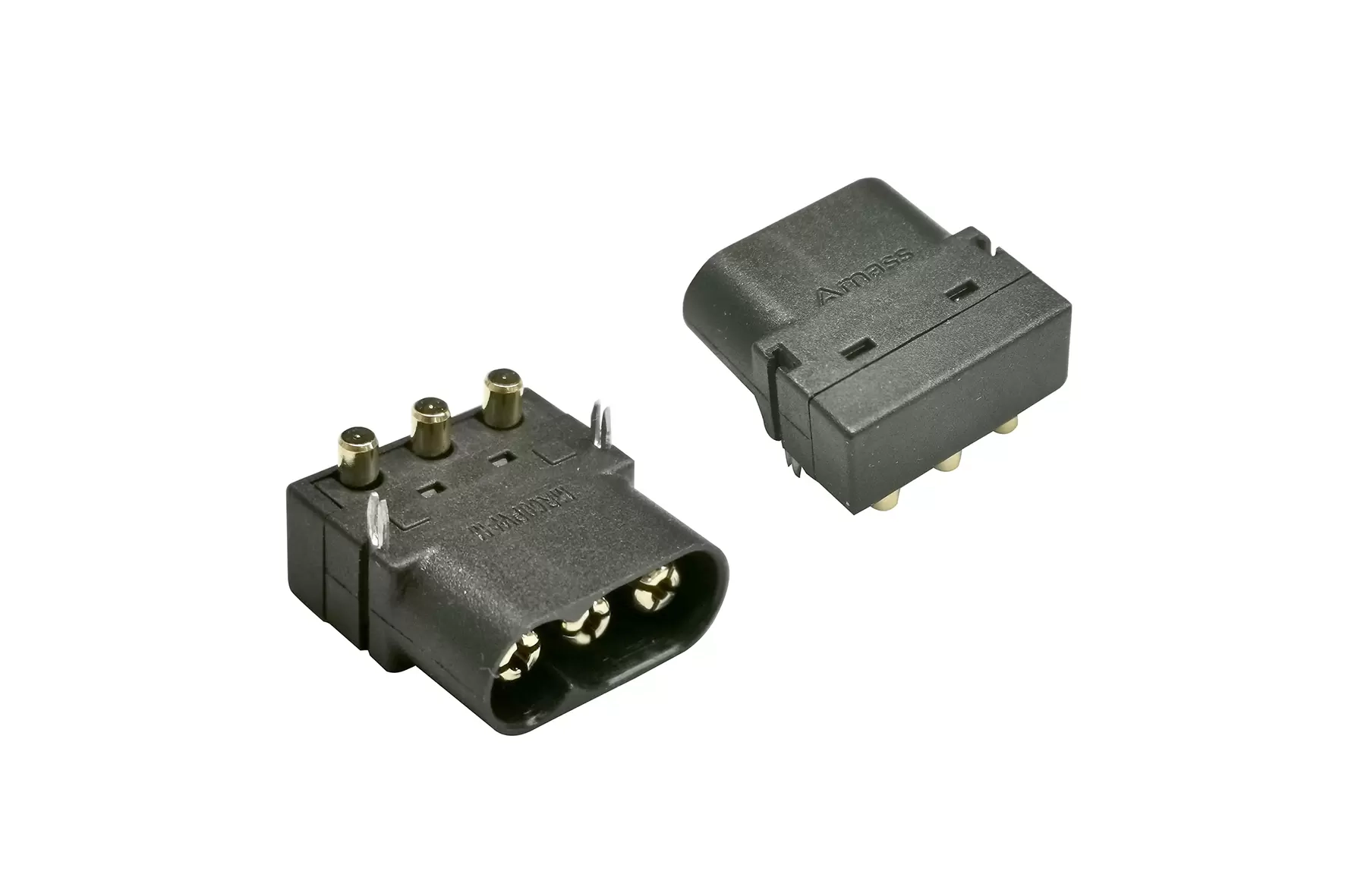

MR three-pin horizontal board connector – male

MR three-pin horizontal board connector – male

DC High-current Connector / MR series
Horizontal 3-pin connector MR60PW-M, motor/controller connector

RoHS

Parameters Specifications

Rated Voltage 600V DC
Operating Temperature -20~120℃
Contact Resistance ≤1.2mΩ
Rated current 35A MAX (△≤85K)
Salt Spray 48H
Insulation Resistance ≥2000MΩ
Material PA/gold-plated brass
Service life 100 times
Protection level IP40
Flame Retardant Rating UL94 V-0（0.8mm）
