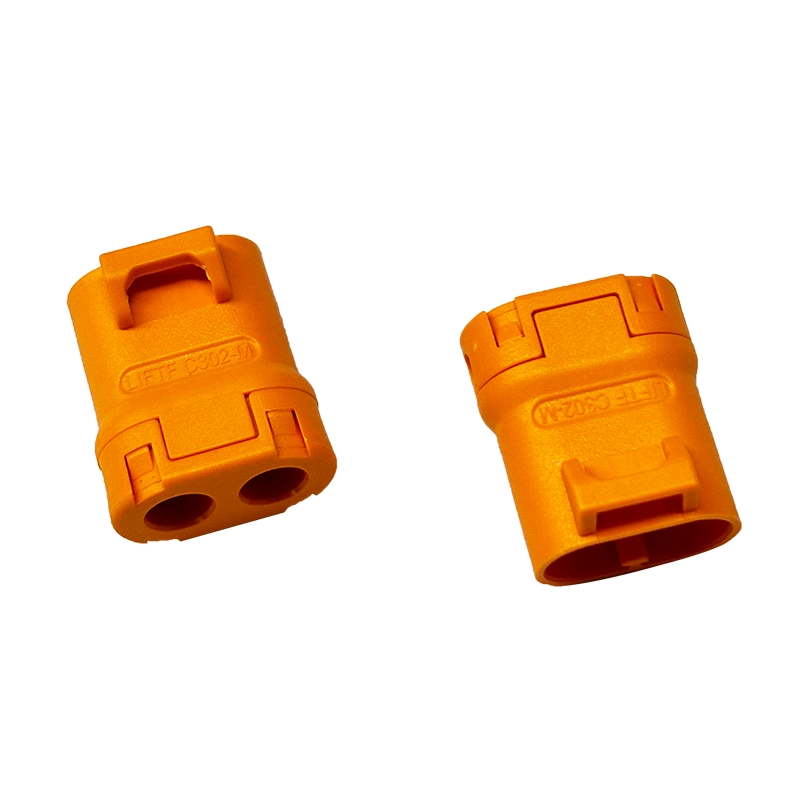

LIFTF two-pin wire connector – male and female thumbnail 1

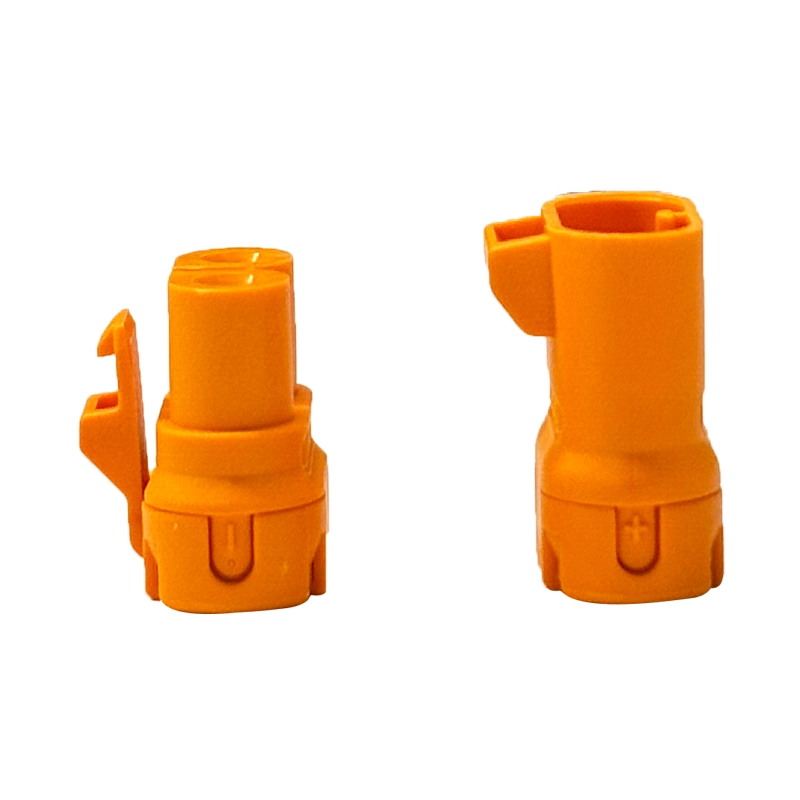

LIFTF two-pin wire connector – male and female thumbnail 2
LIFTF two-pin wire connector – male and female thumbnail 3
LIFTF two-pin wire connector – male and female

LIFTF two-pin wire connector – male and female

DC High-current Connector / LIFTF Series
Small size, high current, lock connector LIFTF C302 wire-to-wire connector, compact power connector.
RoHS

Parameters Specifications

Rated Voltage 150V DC
Operating Temperature -40~120℃
Contact Resistance ≤0.6mΩ
Insulation Resistance ≥2000MΩ
Salt Spray 48H
Wire Connection Method Hexagonal Riveting
Housing Material PBT
Terminal Material Tough Pitch Copper, Silver Plated
Board Connector Method Soldering
Flame Retardant Rating UL94 V-0（0.8mm）
Glow Wire Flammability Index GWFI 850℃（0.8mm）
Environmental Performance RoHS2.0, REACH
Rated Voltage 150V DC
Operating Temperature -40~120℃
Contact Resistance ≤0.6mΩ
Insulation Resistance ≥2000MΩ
Salt Spray 48H
Wire Connection Method Hexagonal Riveting
Housing Material PBT
Terminal Material Tough Pitch Copper, Silver Plated
Board Connector Method Soldering
Flame Retardant Rating UL94 V-0（0.8mm）
Glow Wire Flammability Index GWFI 850℃（0.8mm）
Environmental Performance RoHS2.0, REACH

Suitable Wire Gauge Specifications

12# 30A rated current, temperature rise ≤30K;
12# 40A rated current, temperature rise ≤55K;
12# 50A rated current, temperature rise ≤ 85K;
14# 20A rated current, temperature rise ≤30K
14# 30A rated current, temperature rise ≤ 55K
14# 40A rated current, temperature rise ≤85K
12# 30A rated current, temperature rise ≤30K;
12# 40A rated current, temperature rise ≤55K;
12# 50A rated current, temperature rise ≤ 85K;
14# 20A rated current, temperature rise ≤30K
14# 30A rated current, temperature rise ≤ 55K
14# 40A rated current, temperature rise ≤85K
