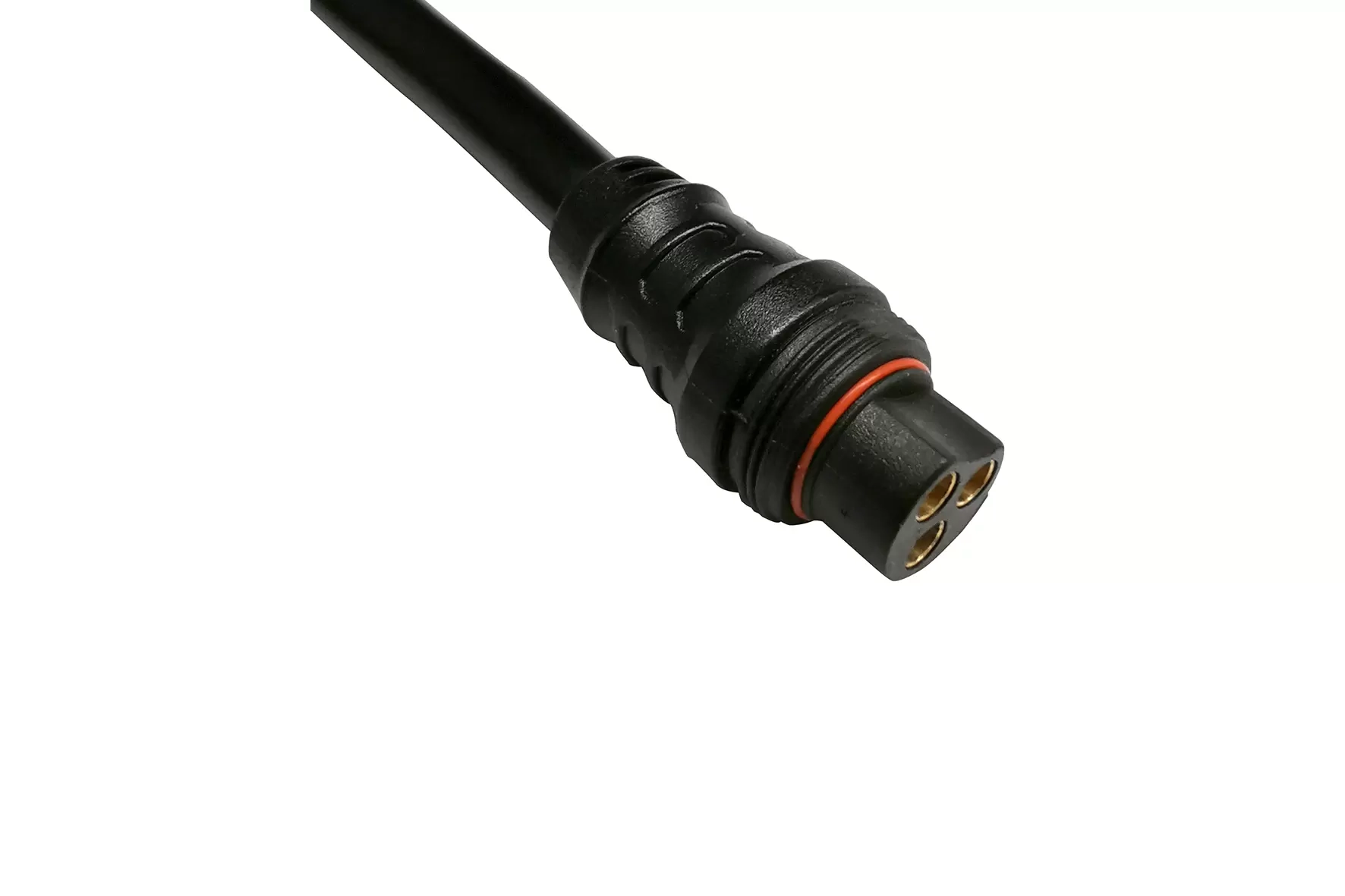

D-1486 three-pin motor cable – male and female

D-1486 three-pin motor cable – male and female

DC High-current Connector / XL Series
Garden tool blade motor line dedicated connector D-1486, high temperature and high humidity resistant connector
RoHS

Parameters Specifications

Rated Voltage 1200V DC
Operating Temperature -20~120℃
Contact Resistance ≤1.1mΩ
Rated current 25A 12#
Salt Spray 48H
Insulation resistance 50MΩ
Material PA/gold-plated brass
Service life 100 times
Flame Retardant Rating UL94 V-0（0.8mm）
Rated Voltage 1200V DC
Operating Temperature -20~120℃
Contact Resistance ≤1.1mΩ
Rated current 25A 12#
Salt Spray 48H
Insulation resistance 50MΩ
Material PA/gold-plated brass
Service life 100 times
Flame Retardant Rating UL94 V-0（0.8mm）

Specifications

Protection level IP40
Protection level IP40
